MAX98357A I2S Amplifier Module 3W Class D: Pinout & Guide

The MAX98357A I2S is a compact digital Class D audio power amplifier designed for embedded audio applications. Unlike traditional analog amplifier modules, it accepts digital I2S audio data directly from a microcontroller, development board, or single-board computer and drives a speaker without requiring a separate DAC.

With high efficiency, selectable gain, built-in protection, and a small PCB footprint, the MAX 98357A is well suited for projects using Raspberry Pi, Arduino, ESP32, and other platforms with I2S audio output.

1. What is MAX98357A I2S Amplifier?

2. Specifications

3. Pinout

4. Features

5. Applications

6. MAX98357A vs MAX98357

7. Frequently Asked Questions

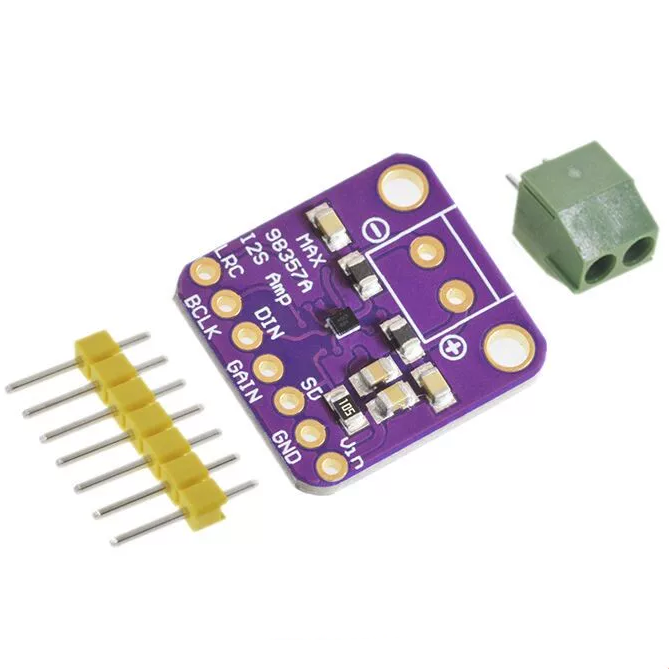

What is MAX98357A I2S Amplifier?

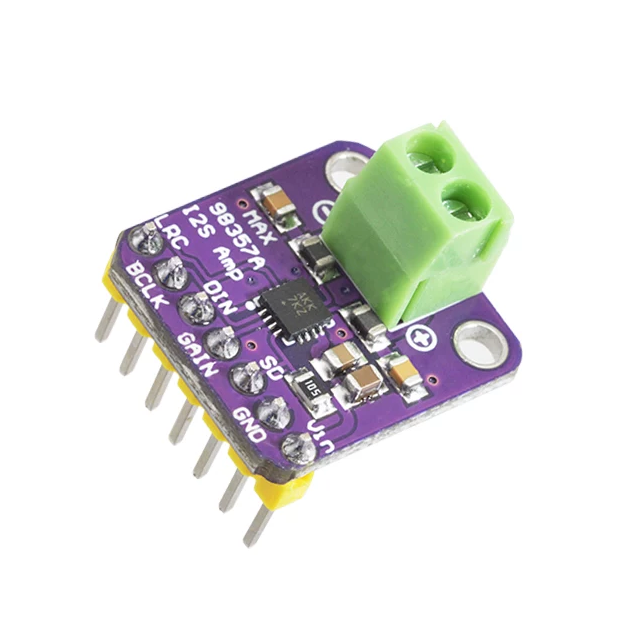

The MAX 98357A is a compact digital-input Class D audio power amplifier designed for efficient, high-quality audio applications. It accepts standard I2S digital audio directly from microcontrollers and development boards, eliminating the need for a separate DAC.

With up to 3.2W output power, high efficiency, selectable gain, strong noise immunity, and built-in protection, the MAX 98357A provides a compact plug-and-play audio solution for Raspberry Pi, Arduino, ESP32, and other I2S-enabled systems.

MAX98357A Module Specifications

Table

One of the convenient characteristics of the module is that it does not require a master clock (MCLK). The device can automatically configure itself for different clock rates and digital audio formats, simplifying the connection between the amplifier and host processor.

Can use the module with Raspberry Pi, Arduino, ESP32, and other microcontrollers or development boards capable of producing I2S audio.

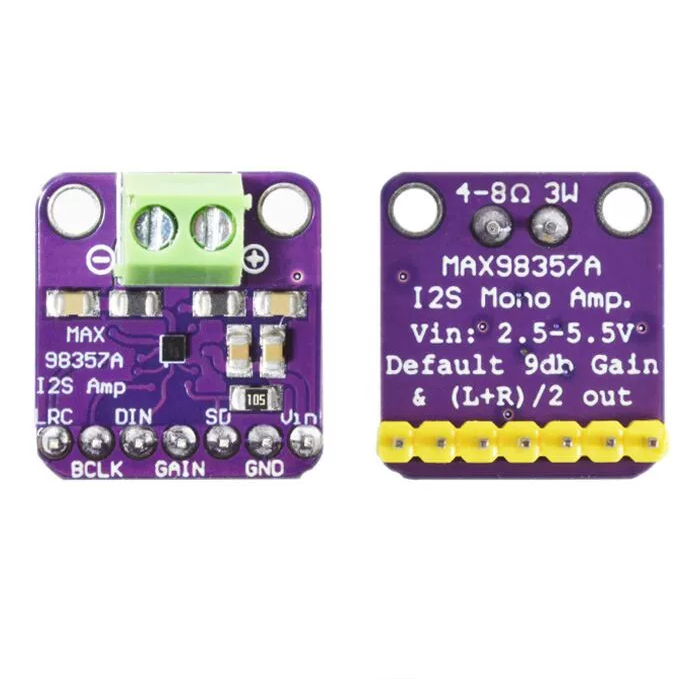

MAX98357A Pinout

The module has seven main pins for power, control, and I2S audio communication.

MAX98357A I2S Audio Amplifier Module Features

I2S Digital Audio Input: The MAX 98357A uses a standard I2S digital audio interface to receive audio data directly from a microcontroller or development board. By combining the functions of an I2S DAC and Class D amplifier, it provides a compact solution without requiring a separate DAC.

I2S Interface: I2S is a digital audio protocol designed specifically for transferring audio data. It is different from I2C and typically uses signals such as digital data, bit clock, and left/right clock. The module can directly process these digital audio signals.

High Output Power: This compact mono amplifier can deliver up to 3.2W into a 4Ω speaker at 5V, making it suitable for small speakers and embedded audio projects.

High Efficiency: The MAX 98357A uses a Class D amplifier architecture, providing high efficiency with relatively low heat generation. This makes it well suited for portable and battery-powered applications.

Wide Logic Compatibility: The I2S audio input supports common 3.3V and 5V logic levels, making the module compatible with many popular development boards.

BTL Speaker Output: The amplifier uses a bridge-tied-load (BTL) output, so the speaker connects directly between the two output terminals. The speaker output should not be connected to GND or another amplifier input.

Selectable Gain: The GAIN pin allows the amplifier gain to be configured to 3dB, 6dB, 9dB, 12dB, or 15dB. The default gain is typically 9dB, while can select different configurations using the appropriate resistor or wiring.

Shutdown and Channel Selection: The SD/Mode pin can place the amplifier into shutdown mode and can also be used for audio channel selection. Depending on the configuration, the MAX 98357A can output left, right, or a stereo mix as mono audio.

Thermal and Over-Current Protection: Built-in thermal and over-current protection helps protect the amplifier during excessive temperature or abnormal output conditions, improving reliability in practical applications.

Applications of MAX98357A

The MAX 98357A is suitable for a wide range of embedded audio applications.

Raspberry Pi Audio Projects

Raspberry Pi boards can generate I2S audio, allowing to use the MAX98357A as a compact digital speaker amplifier. It can be useful for voice assistants, media players, smart-home devices, and notification systems.

Arduino Audio Projects

Arduino boards with suitable I2S audio support can send digital audio directly to the MAX98357A. This makes it possible to build compact sound effects, musical instruments, voice playback, and interactive electronics projects.

ESP32 Audio Projects

The ESP32 is particularly suitable for the MAX98357A because many ESP32 variants provide I2S functionality. Can use the combination for wireless speakers, Internet radio, audio players, alarms, and IoT products.

Portable and Battery-Powered Devices

Because Class D amplification offers high efficiency, the MAX98357A is suitable for portable products where reducing power consumption and heat is important.

Other applications include smart speakers, voice-enabled devices, toys, alarms, portable audio equipment, IoT devices, and embedded sound systems.

MAX98357A vs MAX98357

The terms MAX98357A and MAX98357 are sometimes used interchangeably when discussing MAX98357-series amplifier modules.

For modules using the MAX98357AETE chip, the MAX98357A is the specific device mounted on the board. Therefore, when a module is advertised as a MAX98357 or MAX98357A I2S amplifier module, recommend checking the actual chip marking and module specifications.

In practical DIY projects, the MAX98357A module is commonly used as a compact I2S-to-speaker amplifier because it integrates digital audio processing and Class D amplification into one device.

MAX98357A Datasheet

For detailed electrical characteristics, timing requirements, recommended operating conditions, package information, and absolute maximum ratings, refer to the official data sheet.

Frequently Asked Questions [FAQ]

What is MAX98357A?

MAX 98357A is a digital-input Class D audio power amplifier with an I2S interface. It receives digital audio directly from compatible microcontrollers or computers and drives a speaker without requiring a separate external DAC.

How do I use the MAX98357 circuit?

Connect the module to a suitable 2.5V–5.5V power supply, connect GND, and connect DIN, BCLK, and LRC to the corresponding I2S signals from your controller. Connect the speaker to the BTL output terminals.

What is a Class D amplifier board?

A Class D amplifier board is an audio-amplifier module that uses switching output stages to amplify audio. Its high efficiency generally results in lower power loss and less heat than many linear amplifier designs.

Which amplifier class is best?

There is no single best amplifier class for every application. Class D is an excellent choice when efficiency, compact size, and low heat are priorities. Can prefer class AB in some applications where linear amplification characteristics are more important.

What are the common problems with MAX98357A?

Common problems include incorrect I2S configuration, mismatched sample rates, missing clocks, incorrect gain or shutdown configuration, insufficient power supply capacity, and improper speaker wiring. The BTL output must not be connected directly to ground.

What kind of amplifier is MAX98357?

The MAX 98357 is a digital-input Class D audio power amplifier. The MAX98357A version accepts PCM audio through an I2S interface and internally converts and amplifies the digital audio signal for a speaker.

What are the key features of MAX98357?

Key features include I2S digital audio input, Class D operation, up to 3.2W output into 4Ω, selectable gain, no MCLK requirement, mono BTL output, high efficiency, multiple audio formats, and built-in thermal and over-current protection.

What are the disadvantages of a Class D amplifier?

Class D amplifiers can generate high-frequency switching noise and EMI if the PCB and wiring are poorly designed. They also require correct speaker-output handling because the output is switching rather than a conventional ground-referenced analog signal.

Conclusion

The MAX98357A I2S amplifier is a compact and efficient solution for adding high-quality audio output to embedded electronics projects. Its I2S digital input eliminates the need for a separate DAC, while the Class D architecture provides high efficiency and low heat generation. With up to 3.2W output power, selectable gain, built-in protection, and compatibility with platforms such as Raspberry Pi, Arduino, and ESP32, the MAX98357A is a practical choice for portable speakers, IoT devices, voice projects, and other digital audio applications.
